智能功率模块IPM（Intelligent Power Module）集成驱动电路、保护电路的专用控制IC，外围电路设计更加紧凑、容易。控制IC与功率芯片性能的高度匹配使模块可靠性、稳定性更优，保护功能反应更精准快速。

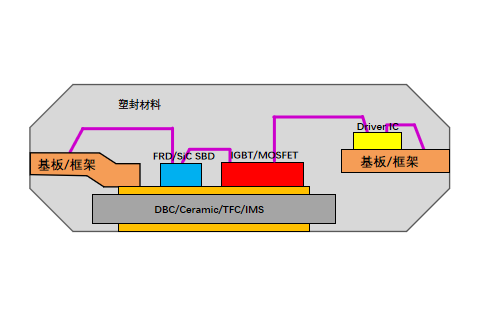

CoolSemi IPM 集成了高性能功率器件以及与功率器件高度匹配的驱动HVIC。集温度检测与自我保护功能于一体。
筛选条件
| Product | Data Sheet | Series | Power Chip | Voltage Rating （V） | Current Rating（A） | Package Size | Package |
|---|---|---|---|---|---|---|---|
| 具体参数，测试条件依据Data Sheet报告内容为主；0为待确认 | |||||||
| CIS06D60R1B2 | 下载 | Micro | IGBT | 600 | 6 | 32*15 | DIP-25 |
| CIS30S60Q1C1 | 索取 | Mini | IGBT | 600 | 30 | 38x24 | DIP-24 |
| CIS20S60Q1C1 | 索取 | Mini | IGBT | 600 | 20 | 38x24 | DIP-24 |
| CIS15S60Q1C1 | 索取 | Mini | IGBT | 600 | 15 | 38x24 | DIP-24 |
| CIS10S60Q1C1 | 索取 | Mini | IGBT | 600 | 10 | 38x24 | DIP-24 |
| CIS06S60L2A1/CIS06S60L2A1S | 下载 | Nano | IGBT | 600 | 6 | 29x12 | SOP-23/DIP-23 |
| CIM05S50CPA1/CIM05S50CPA1S | 索取 | Nano | MOS | 500 | 5 | 29X12 | SOP-23/DIP-23 |
| CIM07S50C3A1/CIM07S50C3A1S | 索取 | Nano | MOS | 500 | 7 | 29X12 | SOP-23/DIP-23 |
| CIM03S50H1A1S/CIM03S50H1A1 | 索取 | Nano | MOS | 500 | 3 | 29X12 | SOP-23/DIP-23 |
| CIM05S50C2A1S/CIM05S50C2A1 | 索取 | Nano | MOS | 500 | 5 | 29X12 | SOP-23/DIP-23 |
| CIM05S50C2A2S/CIM05S50C2A2 | 索取 | Nano | MOS | 500 | 5 | 29X12 | SOP-23/DIP-23 |
| CIM07S50C1A1S/CIM07S50C1A1 | 索取 | Nano | MOS | 500 | 7 | 29X12 | SOP-23/DIP-23 |
| CIM07S50C3A2S/CIM07S50C3A2 | 索取 | Nano | MOS | 500 | 7 | 29X12 | SOP-23/DIP-23 |
| CIM04S60C4A1S/CIM04S60C4A1 | 索取 | Nano | MOS | 600 | 4 | 29X12 | SOP-23/DIP-23 |
| CIM06S60C5A1S/CIM06S60C5A1 | 索取 | Nano | MOS | 600 | 6 | 29X12 | SOP-23/DIP-23 |
| CIS06S60L1A1S/CIS06S60L1A1 | 索取 | Nano | IGBT | 600 | 6 | 29X12 | SOP-23/DIP-23 |
| CIS06D60L2B2 | 下载 | Micro | IGBT | 600 | 6 | 32x15 | DIP-25 |
| CIS10D60L2B1 | 索取 | Micro | IGBT | 600 | 10 | 32x15 | DIP-25 |
| CIS06D60L1B2 | 索取 | Micro | IGBT | 600 | 6 | 32x15 | DIP-25 |
| CIM03D60C1B3 | 索取 | Micro | MOS | 600 | 3 | 32x15 | DIP-25 |
| CIS10D60L1B1 | 索取 | Micro | IGBT | 600 | 10 | 32x15 | DIP-25 |
| CIS15D60L1B1 | 索取 | Micro | IGBT | 600 | 15 | 32x15 | DIP-25 |
| CIS06S60L1D1 | 索取 | Slim | IGBT | 600 | 6 | 32.8x18.8 | DIP-27 |
| CIS10S60L1D1 | 索取 | Slim | IGBT | 600 | 10 | 32.8x18.8 | DIP-27 |
| CIS15S60L1D1 | 索取 | Slim | IGBT | 600 | 15 | 32.8x18.8 | DIP-27 |
| CIS06S60L1C1 | 索取 | Mini | IGBT | 600 | 6 | 38x24 | DIP-24 |
| CIS10S60L1C1 | 索取 | Mini | IGBT | 600 | 10 | 38x24 | DIP-24 |
| CIS15S60L1C1 | 索取 | Mini | IGBT | 600 | 15 | 38x24 | DIP-24 |
| CIS30S60L1C1 | 索取 | Mini | IGBT | 600 | 30 | 38x24 | DIP-24 |
